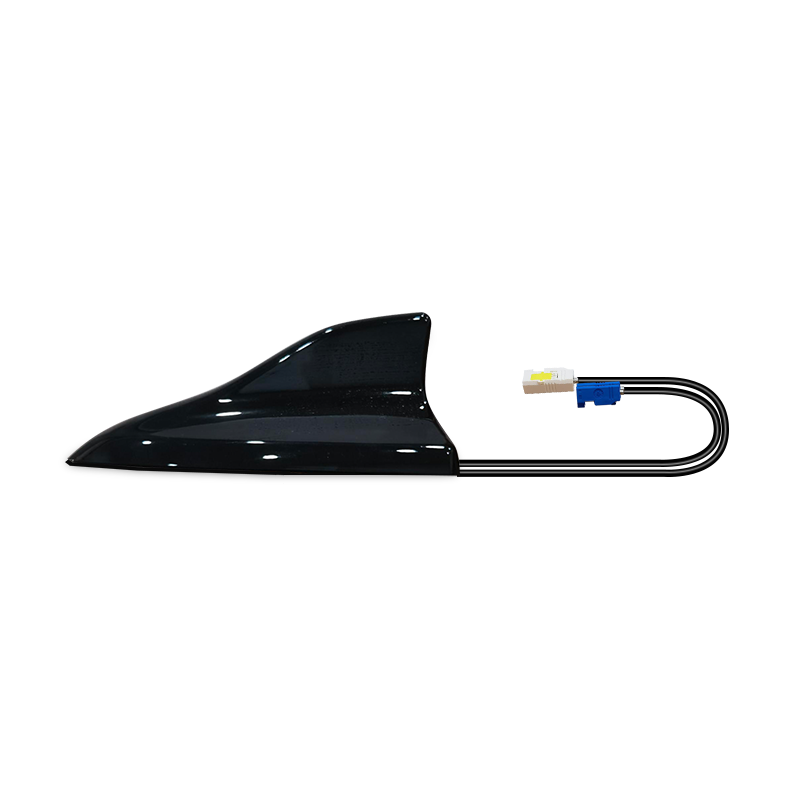

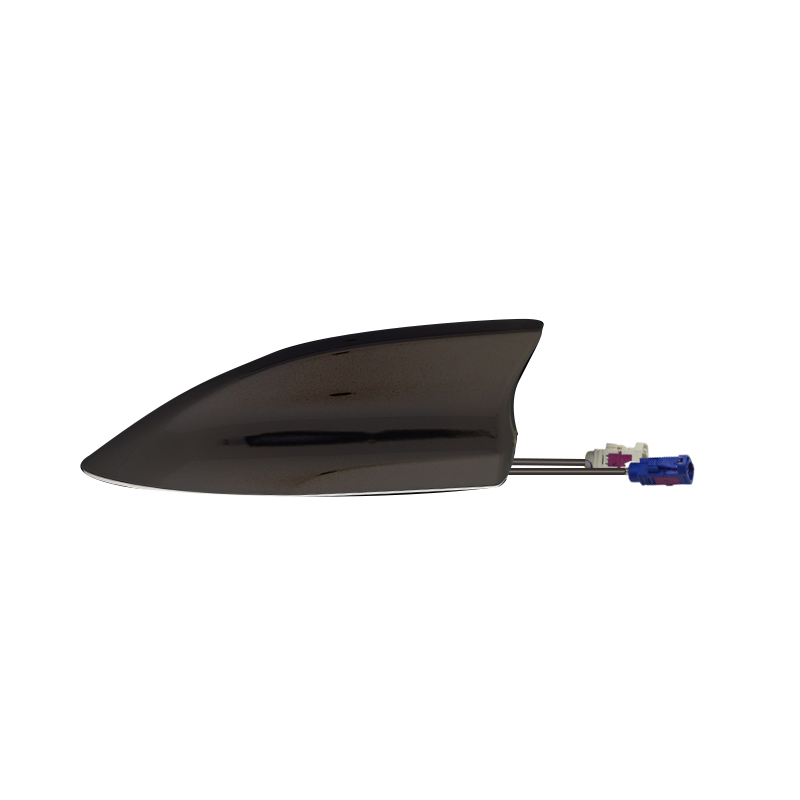

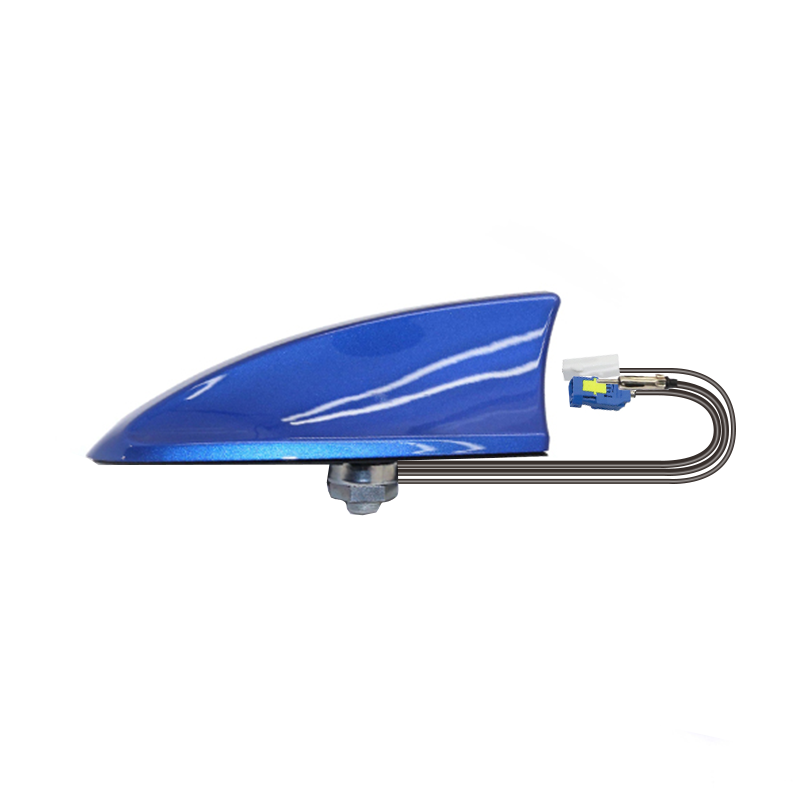

Shark fin multi-function antenna(AM/FM/双GPS/双4G)

If you want to get more product information, you can contact us!

Category:

Multifunctional Combination Shark-fin Antenna

Keywords:

Multifunctional Combination Shark-fin Antenna


Contact us

Description

1. Installation type: screw installation
2. Dimension (mm): 130 * 69.4 * 64
3. Operating temperature: - 40 ° C~+85 ° C
4. Working voltage: DC 8~16V
5. Rated voltage: DC 12V; 3~5V (GPS)
6. V.S.W.R:<2.5 (AM/PM)<2 (BD/GPS)<2.5 (4G)
7. Frequency AM: 515 ~ 1710KHz; FM: 87.5~108MHz
8.BD/GPS:1559~157MHz
9.4G:824~960; 1710~2690MHz
10. Gain (PCB): AM: 6 ± 2db/FM: 10 ± 2db
11.BD/GPS:28±2db
